Miter Clamp Assisted Marking of Pin Board


When making dovetailed joints, how do you align the tail to the pin board (or vice versa) for marking?

Traditional Method:

  • Cut out and clean up tail board
  • Place pin board in vice aligning the end of the board with a board placed on bench
  • Align tail board on (future) pin board
  • Mark



Miter Clamp Method:


Why not use a miter clamp?
  • Alignment is quicker
  • Alignment is a perfect 90°

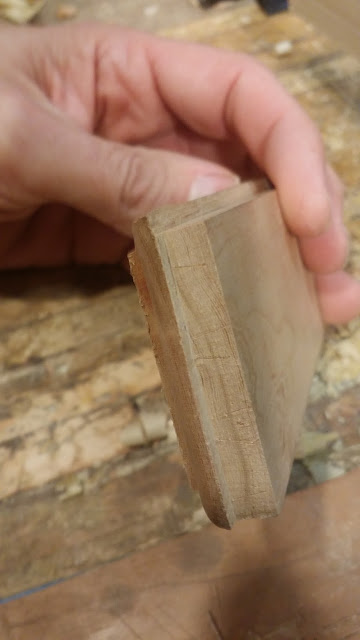

  • It is easier to check for any gap at the base of the dovetails by holding the piece up to a light
  • If the marks are poorly made the first time, marking again is not a problem



If the marks are faint, it is much easier to align the two boards to remark. It is especially easy to reclamp and remark with a lipped draw
